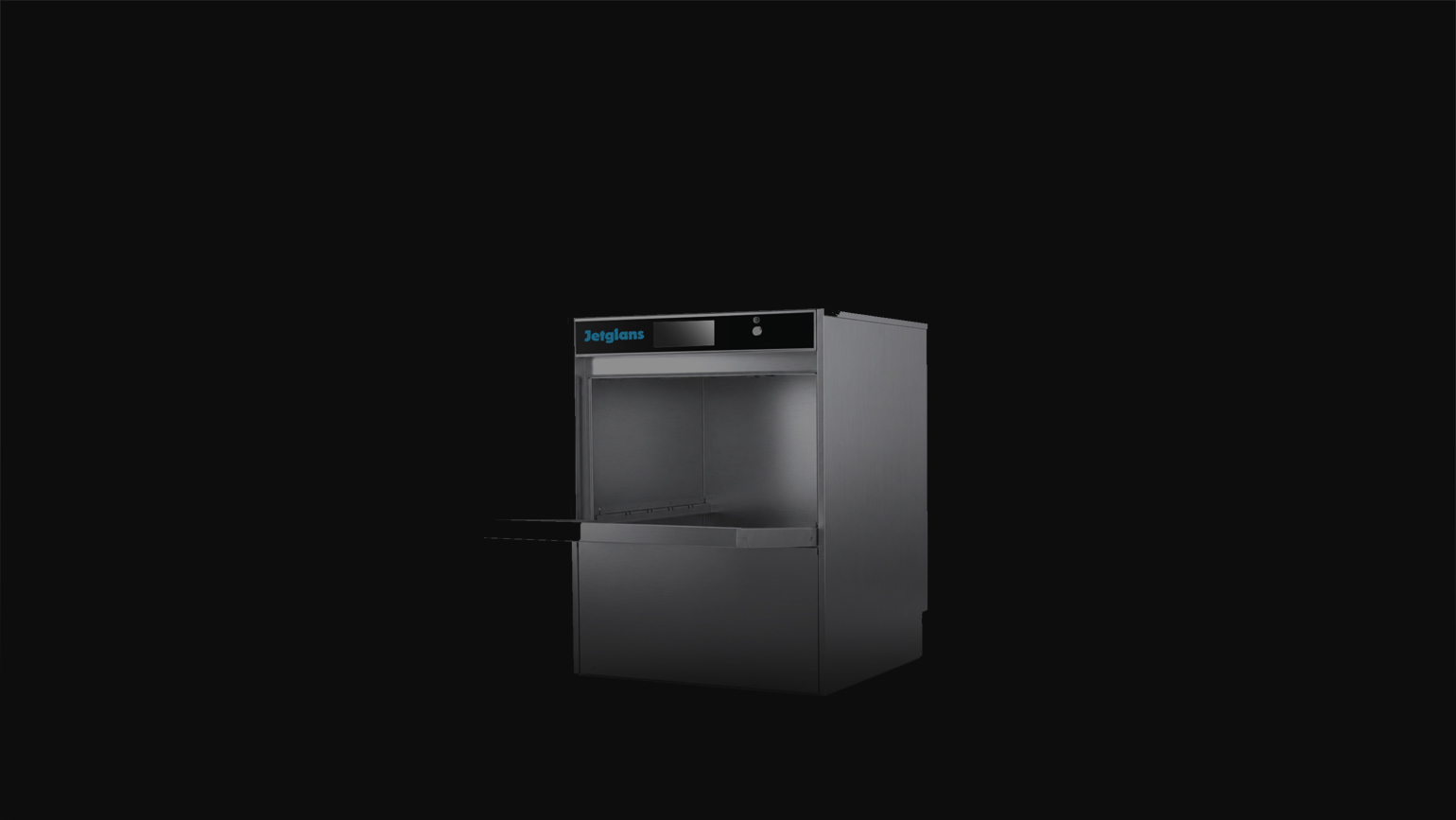

UG-50T
Download product sheet
The Technical Advantages
- The dishes are fully covered by the up and down rotating washing and rinsing, ensuring effective cleaning.
- The implementation of high intelligence precise control technology can slash energy consumption by 20-30%.
- Touch Screen control panel.
- The unique design of the sandwich door offers exceptional thermal insulation and noise reduction.
- The entire machine is made of stainless steel 304, and all the spare parts are selected from high quality products at home and abroad.
The efficient Italian pumps ensure the washing power. - The fully enclosed base panel is crafted with a pest resistant design to keep out bugs and rodents.
Specification
- Size (mm): 570×620×796
- Rated Voltage: 220V/380V/50Hz/3 phase
- Rated Power: 5.9kW/7.4kW
- Washing Heating Output: 1kW/1kW
- Rinse Heating Output: 4.5kW/6kW
- Washing Pump Power: 0.37kW
- Washing Temperature: 55-65°C
- Rinse Temperature: 80-90°C
- Washing Capacity: 50racks/hour
- Water Consumption: 2.3L/rack
Optional Accessories
- Stainless steel workbench
- Washing liquid dispenser
- High pressure shower
- Dishwasher specific tray frame
Installation Standards
- Cable: 4m * m ^ 2 * 3 * 4m * m ^ 2 * 3 + 2.5m * m ^ 2 * 2(GB)
- Switch: ≥32A225A (Earth Leakage Protection)
- Inlet Pipe Diameter: Four centimeter External Screw Thread (DN15)
- Drainage Pipe Diameter: $40г
- Inlet Pressure: 0.15-0.6MPa
- Inlet Temperature: 10-60°C
- Inlet Hardness: ≤50mg/L
Optimum cleaning results
Fast wash cycle
Long service life
