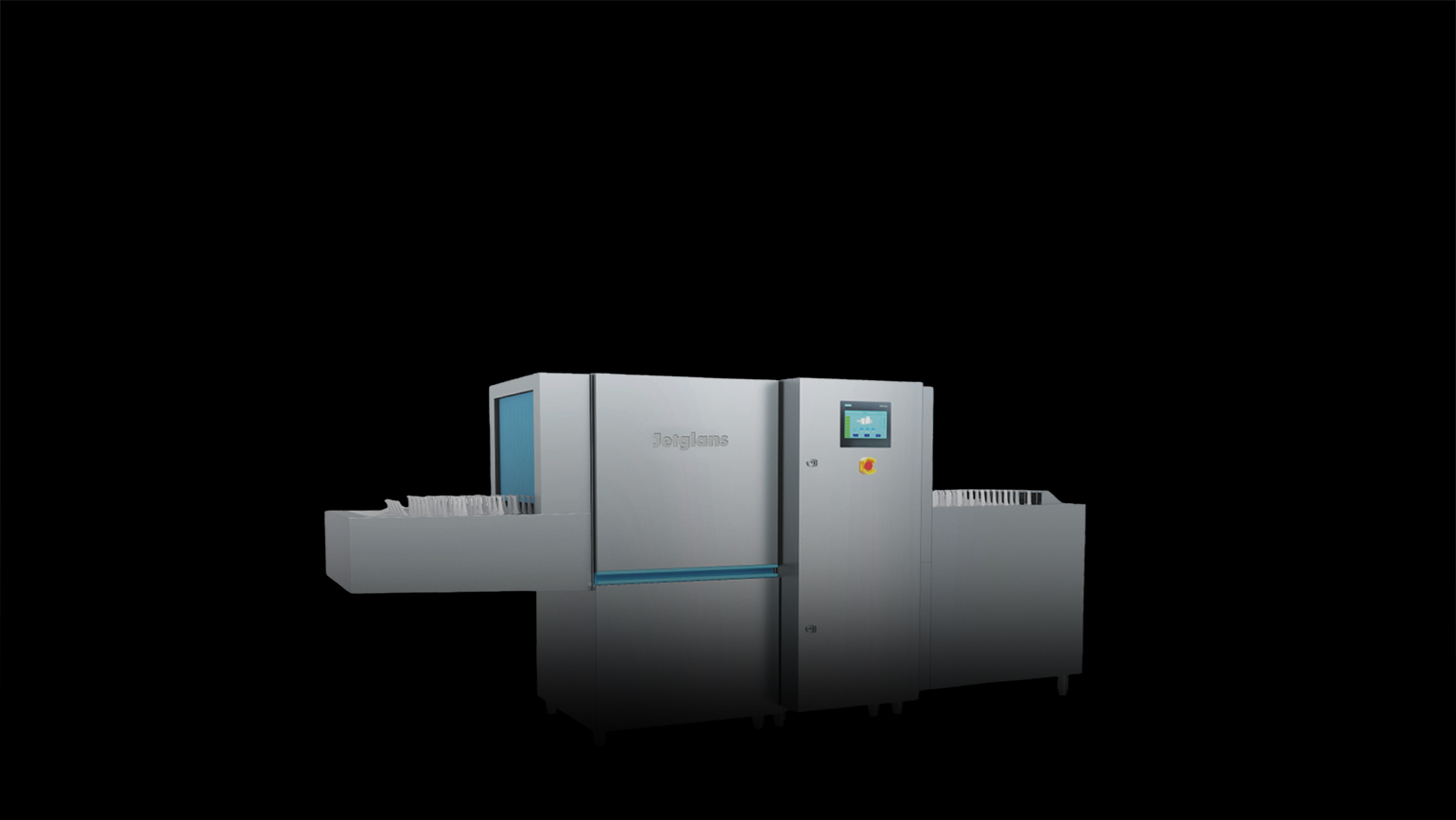

FT-4800
Download product sheet
Product Features
- The ultra-low washing amount(300-350liters/hour) and more lower detergent.
- Built in booster pump and protective devices, which ensure the stability of water pressure.
- The more humane multiple safety protection device.
- The front double-wall with heat insulation, sound insulation and energy saving operated comfortable.
- It’s convenient to assemble and disassemble up/down washing arms. It can be locked tightly with a sightly buckle.
- Conveyor chain row device adopts heat resistance, corrosion resistance, health and non-toxic high strength engineering plastic net grasp, applicable to a wide range.
- Double rinse system ensure a perfect result
Applicable industry
Big hotels,hospital, and other catering
industries
Optional Function
Touch screen (T)
Heat recovery system (R)
Automatic soaking tank (S)
Automatic slag removal (CB)
Air knife (K)
Optional Accessories
Stainless steelworking table, Stainless
sleelshower Professionalwashing rack
.detergent dispenser
| details | |
|---|---|
| Heating Mode | Electrical Heating |
| External Dimention(mm) | 3400 x 1000 x 2040 |
| Gross weight(kg) | 350 |
| Passing width(mm) | 605 |
| Max washing height(mm) | 420 |
| Max washing Capacity(d/h) | 3000-4800 |
| Water consumption(liter/rack) | 300-350 |
| Washing Tank Volum(L) | 90 |
| Booster Volume(L) | 15 |
| Washing Temperature(°C) | 55-60 |
| Rinse Temperature(°C) | 80-85 |
| Water Supply Pressure(Mpa) | 0.15-0.4 |
| Water inlet diameter(in) | G3/4” |
| Supply water temperature(°C) | 10-60 |
| Tankheating(kW) | 129+15 |
| Booster heating(kW) | 36 |
| Rinse pump(kW) | 0.11 |
| Wash pump(kW) | 1.5 |
| Conveyor motor(kW) | 0.55 |
| Total load(kW) | 50 |
| Power requirment | 380/50Hz/3N |
Optimum cleaning results
Fast wash cycle
Long service life
